Advanced Cyclone ER/EW Technology for Compact High-Purity Silver Refining
The demand for ultra-high-purity silver continues to increase across electronics, photovoltaics, aerospace, semiconductors, defense systems, and advanced energy storage. Traditional refinery infrastructure often requires large industrial buildings, complex ventilation systems, and permanent installations that reduce deployment flexibility and increase capital cost.
To address these challenges, a new modular approach has emerged: the fully integrated 5N Silver Processing Plant inside a 40-foot high cube container.
This compact processing platform combines electrorefining, electrowinning, vacuum metallurgy, low-pressure clean processing, and modular industrial architecture into a transportable refinery system capable of producing 99.999% pure silver (5N Ag).

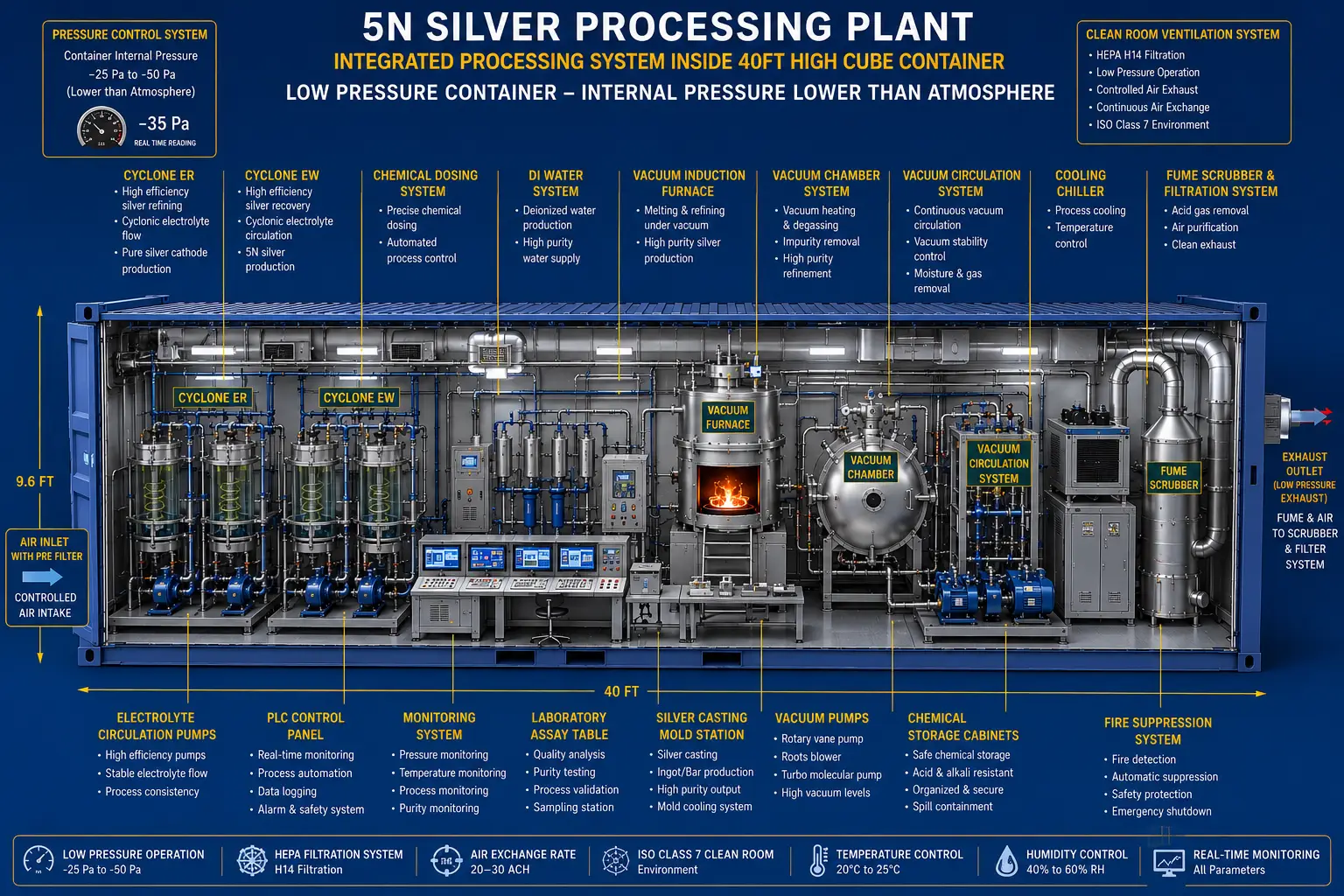

Integrated Cyclone ER/EW Processing System
At the core of the system are the proprietary:

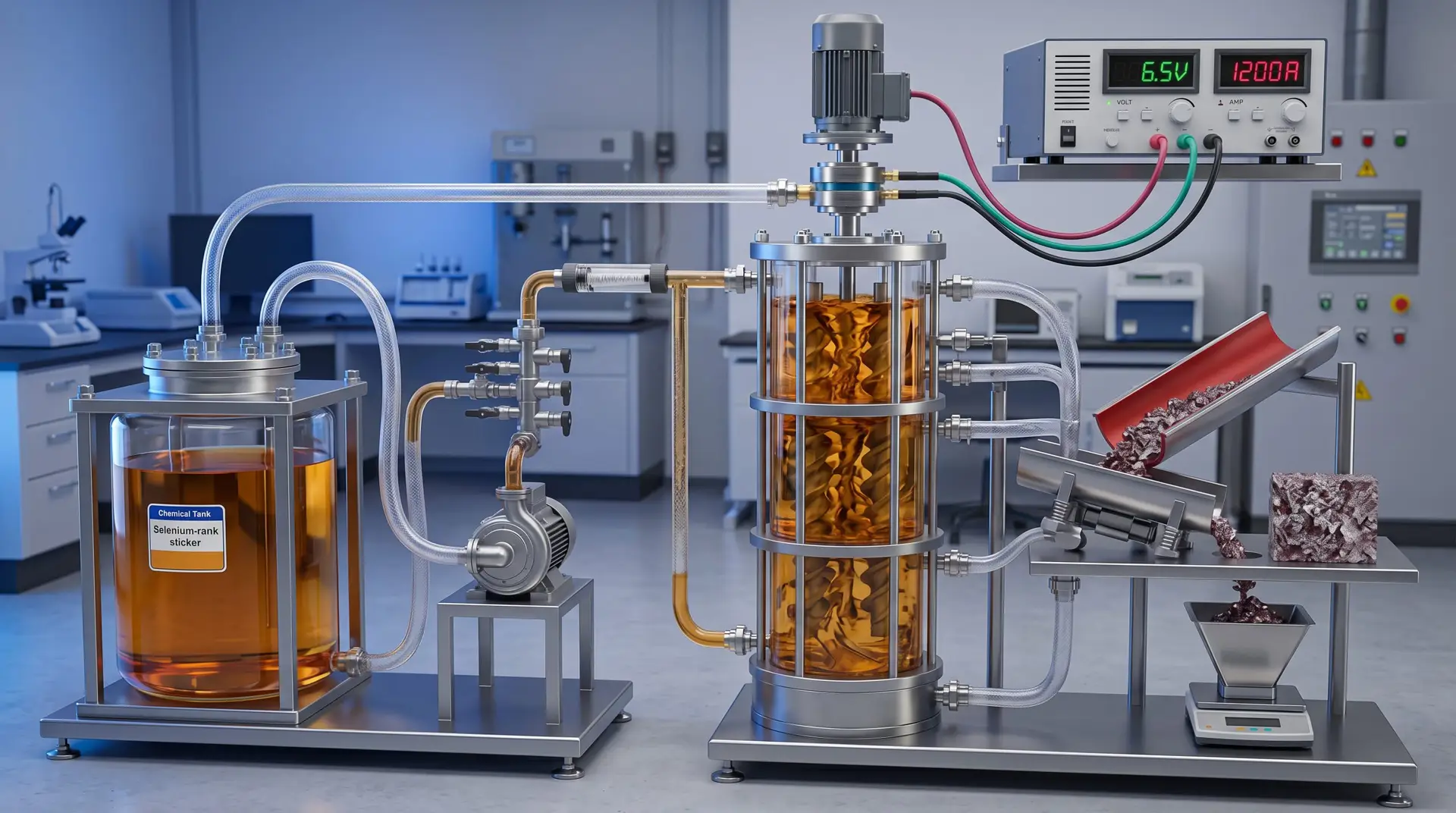

Cyclone ER (Electrorefining) Modules
Cyclone EW (Electrowinning) Modules
Unlike conventional flat-cell electrorefining systems, the cyclone-based vertical cylindrical cell architecture improves:
Electrolyte circulation efficiency
Surface contact uniformity
Current density distribution
Silver crystal growth consistency
Compact installation density
The vertically aligned cylindrical modules maximize processing capacity while minimizing plant footprint, enabling high-throughput refining inside containerized systems.
The modular arrangement also allows rapid maintenance, scalable expansion, and simplified transportation.
Low Pressure Clean Processing Environment
A key innovation of the system is the use of a low-pressure internal operating environment.
Instead of conventional positive-pressure clean rooms, the container interior operates at pressure levels slightly lower than atmospheric pressure.
Advantages include:
Reduced fugitive emissions
Improved contamination containment
Controlled airflow direction
Enhanced operator safety
Efficient fume management
The ventilation architecture integrates:
HEPA H14 filtration
Controlled air exchange
Moisture management
Fume scrubber systems
Exhaust pressure balancing
This creates a stable refining environment suitable for high-purity silver production.
Vacuum Metallurgy Integration
The containerized plant can optionally integrate:
Vacuum induction furnaces
Vacuum circulation systems
Vacuum chambers
Degassing modules
Closed-loop vapor extraction
These systems support:
Final silver purification
Gas removal
Oxide reduction
Controlled cooling
High-purity casting
Vacuum-assisted refining significantly improves final metal quality and consistency for semiconductor and electronics-grade silver.
Advantages of Modular Container Refining
The modular refinery concept offers several strategic advantages over conventional precious metal refining facilities. Because the entire plant is integrated inside standardized containerized structures, the system can be rapidly deployed worldwide using existing shipping and logistics infrastructure, significantly reducing installation time and transportation complexity. The modular architecture also lowers capital costs by minimizing the need for large permanent buildings, extensive ventilation systems, and heavy civil construction typically required for traditional refineries. In addition, the scalable design allows operators to expand production incrementally by adding additional processing modules as demand increases, providing greater operational flexibility and reduced financial risk. The compact system is especially suitable for remote mining projects, recycling centers, and temporary processing operations where conventional refinery infrastructure may be impractical or too costly. Furthermore, the reduced physical footprint and optimized process integration help lower environmental impact by decreasing land usage, ventilation volume, utility consumption, and overall infrastructure requirements while maintaining high-purity metal production capability.
Future Applications
The same modular platform concept may be adapted for:
Gold refining
Copper electrorefining
Rare earth processing
PGM recovery
Battery metal purification
Recycling operations
The combination of compact industrial architecture, cyclone electrochemical technology, and vacuum metallurgy creates a flexible next-generation refining platform for distributed metal processing.
Conclusion
The integrated 40ft modular silver refinery demonstrates how advanced metallurgical engineering can transform traditional refining operations into compact, scalable, and deployable industrial systems.
By combining:
Cyclone ER/EW processing
Open-frame modular construction
Low-pressure clean environments
Vacuum refining technology
Containerized infrastructure
The platform provides a modern solution for producing ultra-high-purity silver in a highly efficient footprint.
As demand for high-purity precious metals continues to rise, modular refining technologies are expected to play an increasingly important role in the future of advanced materials processing.
