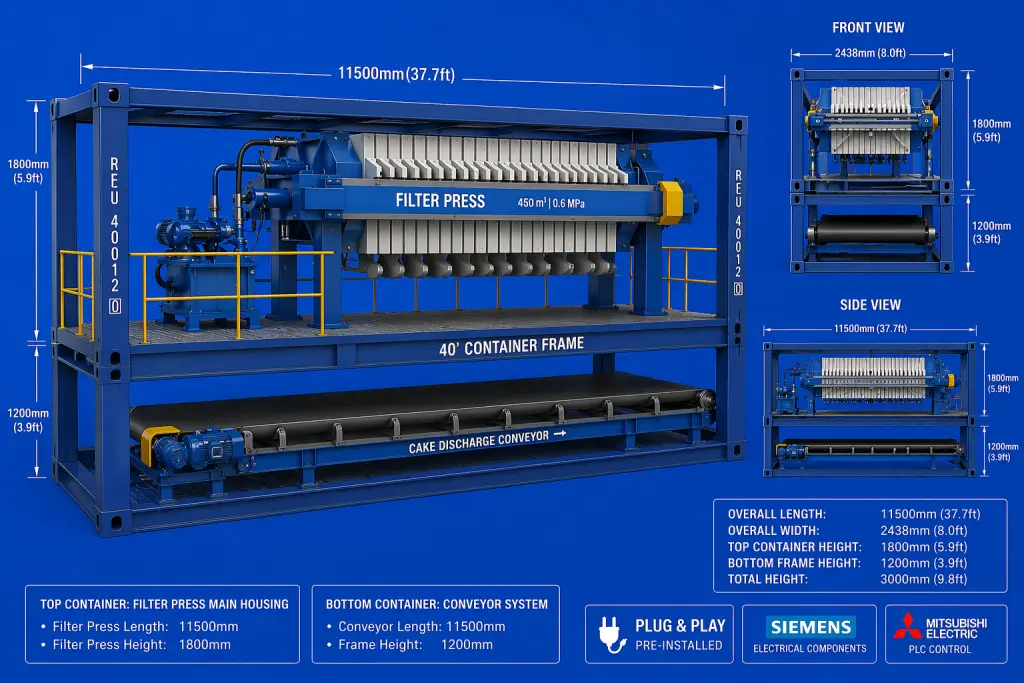

Avimetal’s Filter Press Module is a containerized solid-liquid separation system designed to dewater slurry, concentrate, tailings, and process residues in modular mineral processing plants. The module uses pressure filtration to separate liquid from solids, producing a drier filter cake and cleaner filtrate for reuse or downstream processing. It is designed to reduce water loss, improve material handling, support closed-loop water recycling, and integrate with upstream leaching, grinding, concentration, and downstream drying or refining systems.
Module SKU: AVM-FP-05 | Containerized chamber filter press · 50 m² filter area · For slurry, concentrate, tailings & process-residue dewatering · Closed-loop water recovery
| Filter Area | Plate Size × Count | Filtration Pressure | Cake Moisture Typical | Total Electrical |
|---|---|---|---|---|
| 50 m² | 1000 × 1000 mm × 40 | 1.5 MPa | 12–18% | ~25 kW |
Full Equipment Specification
| SKU | Machine | Function | Capacity | Power (kW) | Input | Output |
|---|---|---|---|---|---|---|
| AVM-FP-05-FT | Slurry Feed Tank | Solids re-suspension & surge before pressing | 2–3 m³ | 3.0 agitator | Wet slurry 5–50% solids | Homogenized feed |
| AVM-FP-05-FP | High-Pressure Feed Pump (AODD or piston) | Progressive pressurization of press chamber | 5–15 m³/h · up to 1.5 MPa | 5.5 | Slurry feed | Pressurized slurry |
| AVM-FP-05-PR | Chamber Filter Press (40 × 1000 mm plates) | Pressure filtration · cake formation · cloth-supported | 50 m² · 0.8 m³ cake/cycle · 30–60 min | — | Pressurized slurry | Cake + clean filtrate |
| AVM-FP-05-HD | Hydraulic Power Unit (Plate Clamping) | Plate-pack clamping force; controlled opening for cake discharge | 200–400 bar clamping | 5.5 | Operator / PLC | Sealed plate stack |
| AVM-FP-05-FC | Filtrate Collection Tank | Clean liquid recovery suitable for closed-loop water reuse | 3–5 m³ | 2.2 transfer pump | Filtrate from press | Recycled process water |
| AVM-FP-05-AB | Air Blow & Cake Drying System | Post-filtration cake dewatering using compressed air | 0.6–0.8 MPa · 0.5–1.0 m³/min | 5.5 compressor | Compressed air + cake | Dewatered cake 8–12% |
| AVM-FP-05-CW | Cake & Cloth Wash System | Automatic spray-bar cloth washing between cycles | 1.5–3 m³/h · automated valves | 2.2 wash pump | Clean water or filtrate | Cleaned cloths + spent wash |
| AVM-FP-05-CT | Control Skid (PLC + HMI) | Cycle automation · pressure / flow · plate-shift · safety interlocks | 1 operator + cycle counters | 1.5 cabinets | All instrumentation | Cycle automation + records |
Cycle: Slurry pumped in → cake forms against filter cloth → air blow dewaters → plates open → cake drops to conveyor or bin → cloths automatically washed → plates close → next cycle. Filter cake moisture is application-dependent: 12–18% typical for chamber-plate operation on mineral concentrate and can drop to 8–12% with extended air-blow time or membrane squeeze-plate upgrade. Filter cloth selection includes polypropylene standard cloths or PVDF / PTFE for chemically aggressive duties. Closed-loop water recovery makes this module suitable for water-scarce sites and ESG-compliant operations.
Commercial Terms & Certifications
| Lead Time | 90 days from PO confirmation, FAT-tested before shipment |
| Warranty | 12 months on workmanship · 24 months on press frame, hydraulic system & plates · 12 months or 1,500 cycles on filter cloths whichever first · 24 months on PLC hardware |
| Included Scope | Engineering, integration, FAT, on-site install supervision, operator training, O&M manuals, first-fill filter cloth set plus one full spare set, spare seal/gasket kit, hydraulic oil charge |
| Certifications | Engineered by Avimetal · Manufactured by UL, CE, ETL, ISO 9001-certified OEM partners · Pressure parts to ASME Section VIII or PED CE marking · Hydraulic system to ISO 4413 · Control panels UL 508A-listed |
| Payment Terms | 30% deposit on PO · 70% on shipment or irrevocable letter of credit |
| Recommended Pairings | Upstream: Wet Gravity Concentration AVM-WGC-05, Autoclave AVM-AC-12K, cyanide / thiosulfate / acid leach circuits, tailings reprocessing feeds · Downstream: Steam Dryer AVM-SD-05, High-Temp Fusion Furnace AVM-HTF-1000, Rotary Kiln AVM-RK-1000, dry-stack tailings storage · Service: closed-loop water return to upstream leach and wash circuits |
