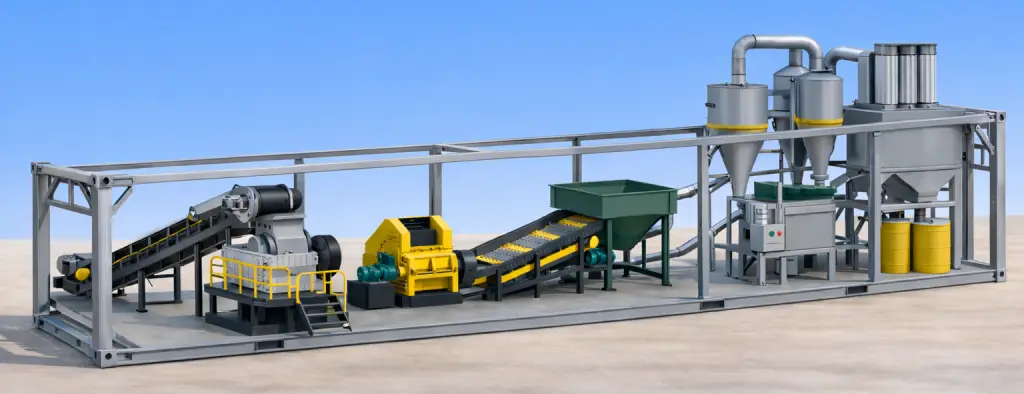

Avimetal’s Crush Line Module (Dry) is a containerized dry crushing and material-preparation system designed for remote or fast-deployment mining operations. The module integrates feeding, jaw/hammer crushing, fine hammer crushing, conveyors, hopper flow control, vibratory screening, dual cyclone dust removal, baghouse filtration, and discharge handling into a self-contained 40-foot container setup. It is designed for plug-and-play installation, reduced infrastructure needs, dust-controlled operation, and scalable throughput from small production ranges up to future expansion of 100 TPH.
Module SKU: AVM-CL-D-05
Containerized dry crushing, screening, and dust-control line · 5 TPH min throughput · open 40-ft footprint
Full Equipment Specification
| SKU | Machine | Function | Capacity (TPH) | Power (kW) | Input Size | Output Size |
|---|---|---|---|---|---|---|
| AVM-CL-D-FC-05 | Feed Conveyor | Raw material feed | 5–20 | 2.2 | 0–300 mm | Controlled feed |
| AVM-CL-D-JC-05 | Jaw Crusher | Primary size reduction | 5–15 | 15 | 0–300 mm | 10–50 mm |
| AVM-CL-D-HC-05 | Hammer Crusher | Coarse crushing | 5–10 | 22 | 10–50 mm | 0–5 mm |
| AVM-CL-D-RC-05 | Roller Crusher | Fine crushing | 5–10 | 11 | 0–5 mm | < 1 mm |
| AVM-CL-D-TC-05 | Transfer Conveyor | Material transfer | 5–15 | 2.2 | 0–1 mm | Same |
| AVM-CL-D-HP-05 | Hopper | Flow stabilization | 5–15 | — | 0–1 mm | Controlled discharge |
| AVM-CL-D-VS-05 | Vibratory Screen | Metered feeding | 5–10 | 2 × 2.2 | 0–5 mm | Uniform feed |
| AVM-CL-D-DC-05 | Dual Air Cyclone | Dust removal | Matched | — | Fine dust | Clean air + fines |
| AVM-CL-D-BF-05 | Baghouse Filter | Final dust filtration | Matched | 22 | Fine dust | Clean air |
| AVM-CL-D-DS-05 | Discharge System | Product handling | 5–10 | 1.5 | Processed material | Final product |
A 40-ft open-frame container design enables modular deployment and scalability from 10 TPH up to 100 TPH.

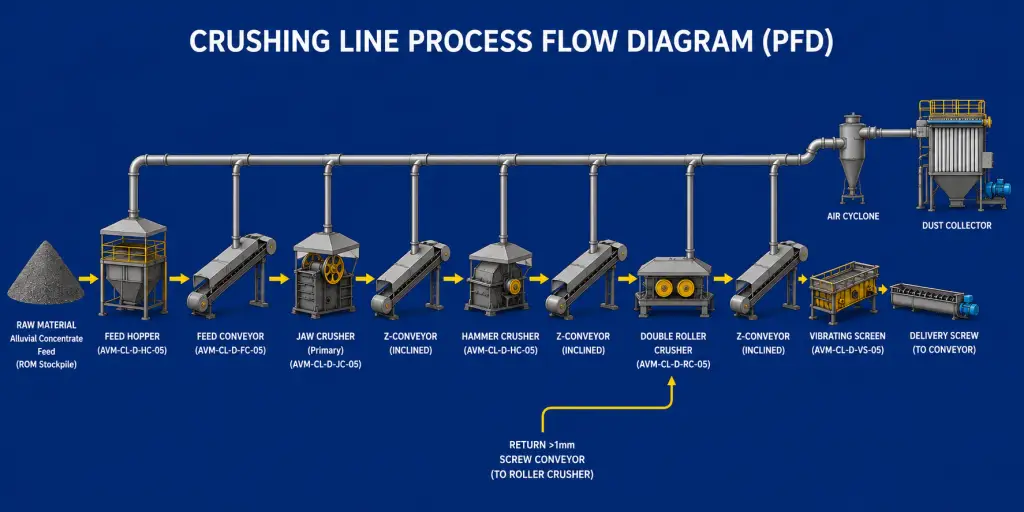

PFD
Commercial Terms & Certifications
Lead time | 90 days from PO confirmation (FAT-tested before shipment) |
Warranty | 12 months on workmanship, 24 months on structural / mechanical frame |
Included | Engineering, integration, FAT, on-site install supervision, operator training, O&M manuals |
Certifications | Engineered by Avimetal · Manufactured by UL, CE, ETL, ISO 9001-certified OEM partners |
Payment terms | 30% deposit on PO · 70% on shipment (or letter of credit) |
Recommended pairings – Downstream: Wet Pulverizing Module Module
