Avimetal’s Rotating Electrowinning System is a compact precious-metal recovery system designed to recover gold, silver, platinum, rhodium, and other valuable metals from mining, jewelry, e-waste, photographic, and industrial waste solutions. The system uses a rotating cathode design for efficient metal deposition, easy metal removal, and reduced downtime, while delivering up to 99.8% purity. It is modular and scalable from 1 to 8 cells, with low-voltage operation, low energy consumption, and strong recovery performance for cleaner, more efficient metal recovery.
Product Family: AVRE Series — 8 Modular Configurations | Compact precious-metal recovery for plating baths, e-waste, jewelry, refinery polishing & small-scale mining
| Cell Count | DC Current Range | Au Production Range | Ag Production Range | Product Purity |
|---|---|---|---|---|
| 1–8 cells | 150–1,200 A | 0.37–2.94 kg/h | 0.60–4.83 kg/h | Up to 99.8% |
How This Differs from the Cyclone Electrowinning System AVEW
The Rotating EW AVRE is optimized for secondary recovery and waste-stream processing, including plating baths, drag-out, jewelry stripping liquor, photographic waste, and e-waste leachates where solutions are dilute, variable, or chemically aggressive. The Cyclone EW AVEW is built for primary mining leach solutions at industrial scale. Many refineries operate both systems: AVEW for the bulk gold / silver leach circuit, and AVRE for polishing tails, recovering plating drag-out, and processing recycled feedstocks.
Model Configurations — Single-Module Production Capacity
All cells operate at 4.5 V DC, 150 A each. Add cells to scale current and metal-deposition rate in 150 A / 0.68 kW increments. A single AVRE module supports 1 to 8 cells, and multiple modules can be deployed in parallel for higher throughput.
| SKU | Cells | Voltage | Current | Power (kW) | Au Production (kg/h) | Ag Production (kg/h) |
|---|---|---|---|---|---|---|
| AVRE-1 | 1 | 4.5 V | 150 A | 0.68 | 0.37 | 0.60 |
| AVRE-2 | 2 | 4.5 V | 300 A | 1.35 | 0.74 | 1.21 |
| AVRE-3 | 3 | 4.5 V | 450 A | 2.03 | 1.10 | 1.81 |
| AVRE-4 | 4 | 4.5 V | 600 A | 2.70 | 1.47 | 2.41 |
| AVRE-5 | 5 | 4.5 V | 750 A | 3.38 | 1.84 | 3.02 |
| AVRE-6 | 6 | 4.5 V | 900 A | 4.05 | 2.20 | 3.62 |
| AVRE-7 | 7 | 4.5 V | 1,050 A | 4.73 | 2.57 | 4.23 |
| AVRE-8 | 8 | 4.5 V | 1,200 A | 5.40 | 2.94 | 4.83 |
Key Features
- Graphene-coated graphite anode: Enhanced electron flow and higher current efficiency than standard graphite anodes, with longer operating life under acidic and chloride conditions.

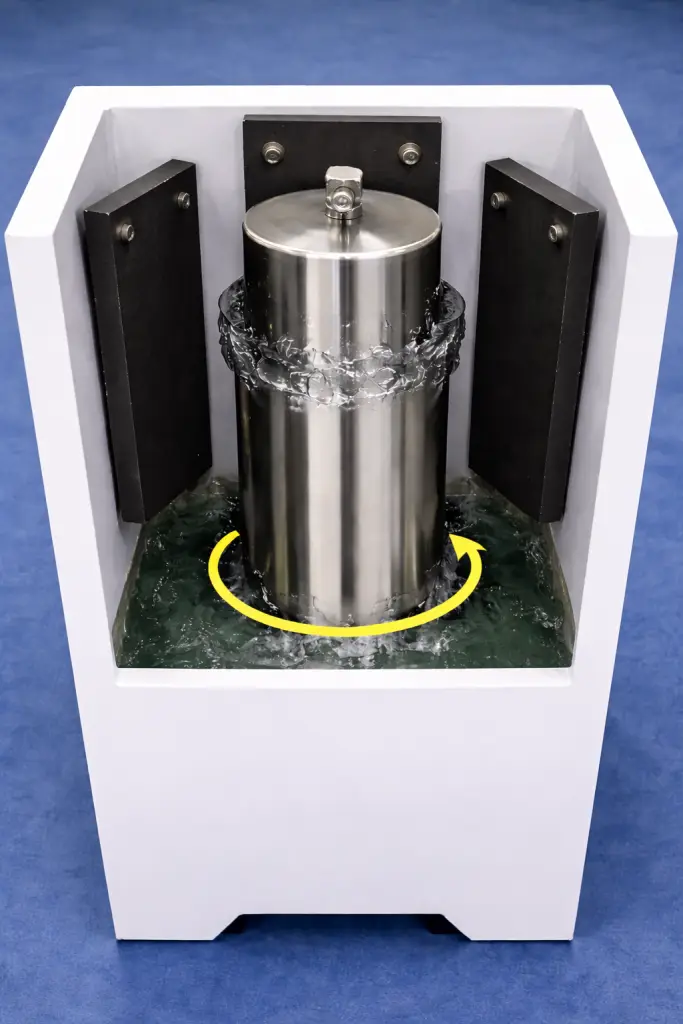

- Vertically rotating Ti cathode: Mechanical rotation creates a uniform mass-transfer boundary layer for even deposition and easy harvest.
- Selective metal recovery: Recovers Au, Ag, Pt, Rh, Pd, Cu, and other valuable metals using target voltage / current profiles.
- Up to 99.8% purity: Direct cathode product suitable for resale or further refining.
- Modular 1–8 cell scaling: Start with a single cell and expand by adding cells without replacing the rectifier or controls.
- Compact footprint: Designed for workshop and refinery floor installation without specialized foundation.
- Tolerant of dilute and variable feed: Suitable for waste streams with varying metal concentrations.
- Cost-effective and eco-friendly: Low power consumption and closed-loop solution handling reduce effluent and disposal cost.
Typical Applications
| Recycling & Waste Streams | Plating bath solutions, Au / Ag / Pt / Rh drag-out, e-waste and PCB leach solutions, photographic silver waste, jewelry stripping and cleaning solutions, dental scrap recovery |
| Refinery & Workshop | Refinery polishing of dilute pregnant solutions, spent electrolyte recovery from larger EW / ER operations, small-scale gold and silver mining, pilot-scale R&D process development |
Commercial Terms & Certifications
| Lead Time | 30 days for AVRE-1 to AVRE-4 · 45 days for AVRE-5 to AVRE-8 · FAT before shipment |
| Warranty | 12 months on workmanship · 24 months on titanium cathode and rotational drive · graphene-coated anodes: 18 months or 6,000 operating hours |
| Included Scope | Engineering, integration, FAT, on-site install supervision, operator training, O&M manuals, first-fill anode set, spare titanium cathode insert, complete seal / gasket kit |
| Certifications | Engineered by Avimetal · Manufactured by UL, CE, ETL, ISO 9001-certified OEM partners · Rectifier: IEC 60146 / IEC 60519-3 · Control panels UL 508A-listed |
| Payment Terms | 50 / 50 on AVRE-1 to AVRE-4 · 30 / 70 on AVRE-5 to AVRE-8 · irrevocable letter of credit accepted |
| Recommended Pairings | Upstream: plating shops, electroless plating lines, jewelry / dental refineries, e-waste leach circuits, photographic processing waste · Complementary: Cyclone Electrowinning AVEW for primary mining, Cyclone Electrorefining AVER for cathode purification · Downstream: High-Temp Fusion Furnace AVM-HTF-1000 for bullion casting, Precious Metal Refining Plant |
