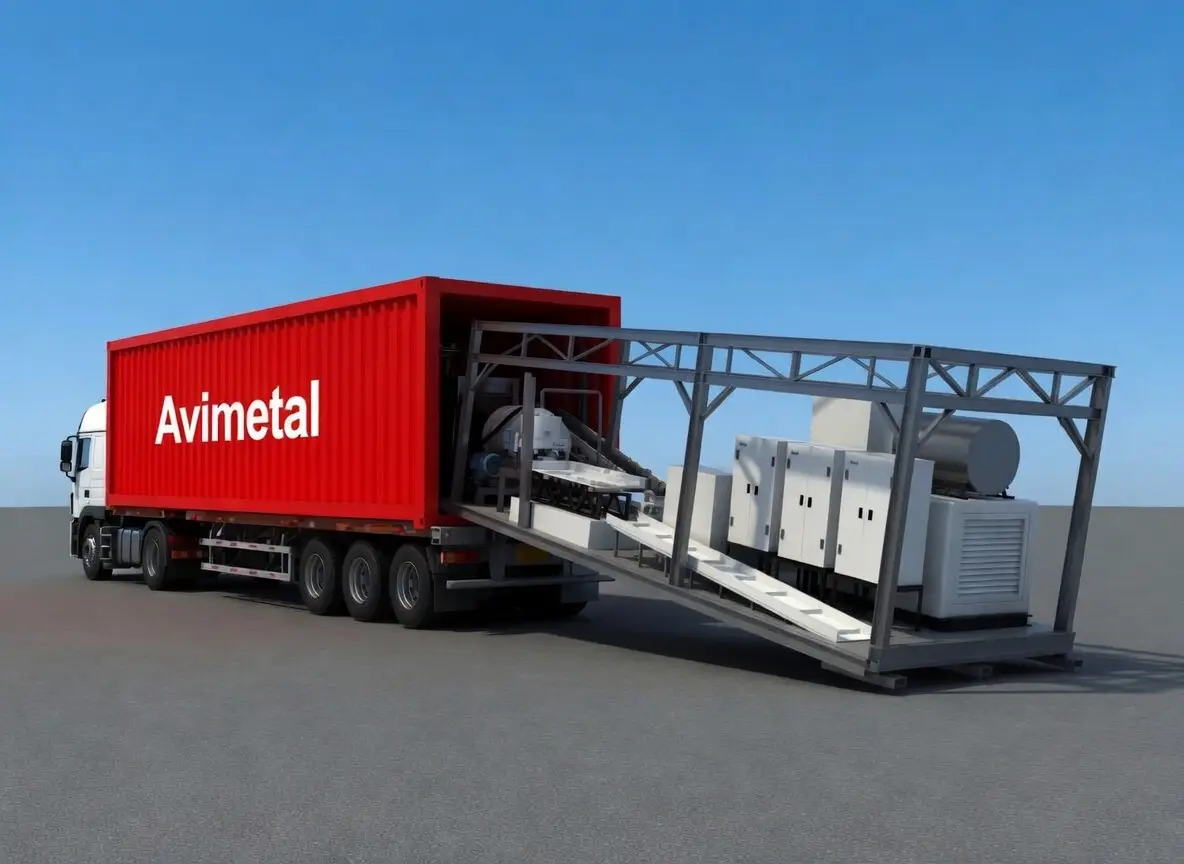

Avimetal’s modular processing equipment is shipped inside a standard 40ft high-cube container on a flatbed truck. The module is built with a strong gray container-style frame designed for fast and safe unloading at your site. Here are three proven methods:1. Unloading by Crane (Recommended for Heavy or Complex Modules)
Use a mobile crane or overhead crane rated for the module’s weight (typically 20+ tons). Attach certified slings or a spreader bar to the built-in lifting points on the gray frame. Lift the entire framed module vertically out of the container and place it gently on the ground or prepared foundation. This method is fast, requires minimal site preparation, and is ideal when space around the truck is limited.2. Slide-Out Method Using Forklifts
Leverage the module’s built-in sliding frame design. Position one or two heavy-duty forklifts (minimum 25-ton capacity recommended) — one at the rear to provide slight lift and control, and optionally one on the side for additional support. With the container doors open, slowly drive the truck forward while the forklift(s) guide the module. The module slides smoothly out of the container onto the ground or temporary supports. This coordinated “drive-away” technique works well for most sites.3. Slide-Out Using Rolling Dollies on a Loading Dock
If a loading dock is available, align the rear of the container with the dock level. Place heavy-duty rolling dollies or low-profile skates under the module’s frame. Open the container doors and carefully pull or winch the module out along its integrated sliding rails onto the dock. Avimetal supplies the rolling dollies with the shipment for this purpose. This method is simple, cost-effective, and requires the least heavy equipment.Safety Tips
- Always use certified rigging personnel and equipment with adequate safety margins.
- Ensure the ground or dock can support the full weight of the module.
- Chock the truck wheels and use spotters during every step.
- Follow Avimetal’s unloading guidelines provided with the shipment.
These three methods give you flexibility depending on your site equipment and layout. Choose the one that best matches your available resources for the safest and quickest unloading.
