Graphene Electrode Cyclone Electrowinning System

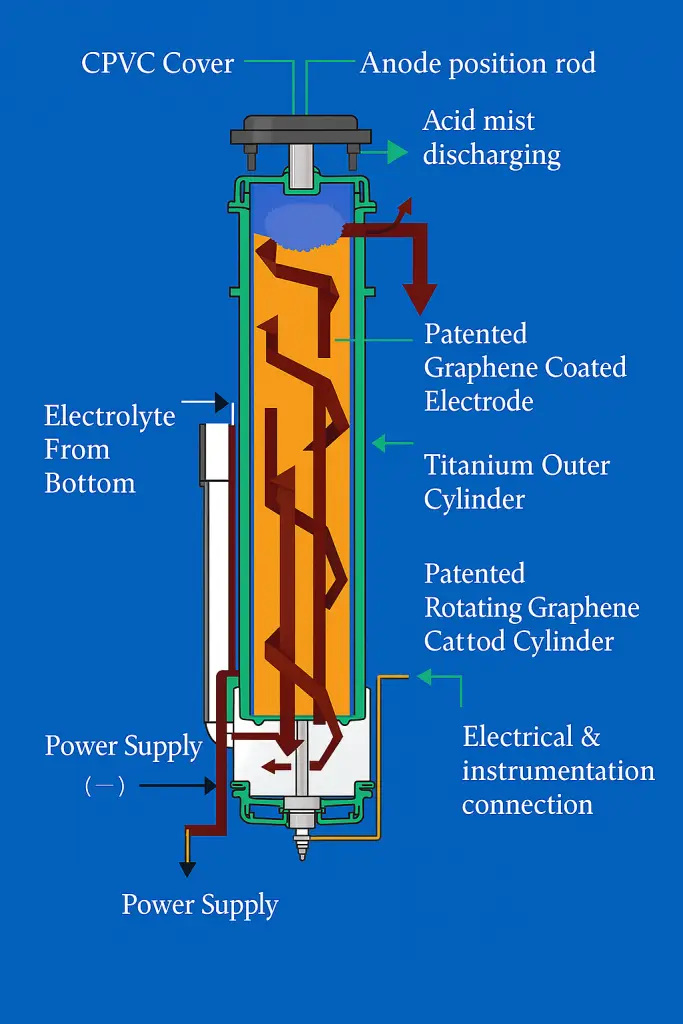

🔧 Component Overview

1. CPVC Cover

• The cover made of CPVC (Chlorinated Polyvinyl Chloride) provides chemical resistance and durability under acidic conditions.

2. Anode Position Rod

• This holds the anode in a fixed position within the center of the cell, allowing uniform current distribution.

3. Acid Mist Discharging

• A port or vent for removing acid mist or fumes generated during electrochemical reactions — critical for safety and environmental control.

4. Electrolyte Inlet (Bottom Feed)

• The system feeds electrolyte solution (usually acid with metal ions) from the bottom, promoting upward flow and effective mass transfer.

5. Power Supply Connections

• Negative terminal (–) connects to the cathode (outer rotating cylinder).

• Positive terminal (+) connects to the anode (central rod or electrode).

6. Patented Graphene Cathode Cylinder

7. Patented Graphene-Coated Electrode (Anode)

8. Titanium Outer Cylinder

9. Electrical & Instrumentation Port
